Single Phase Electric Instantaneous Water Heater – 6.3kW

6.3kW / 8.5kW Point of use

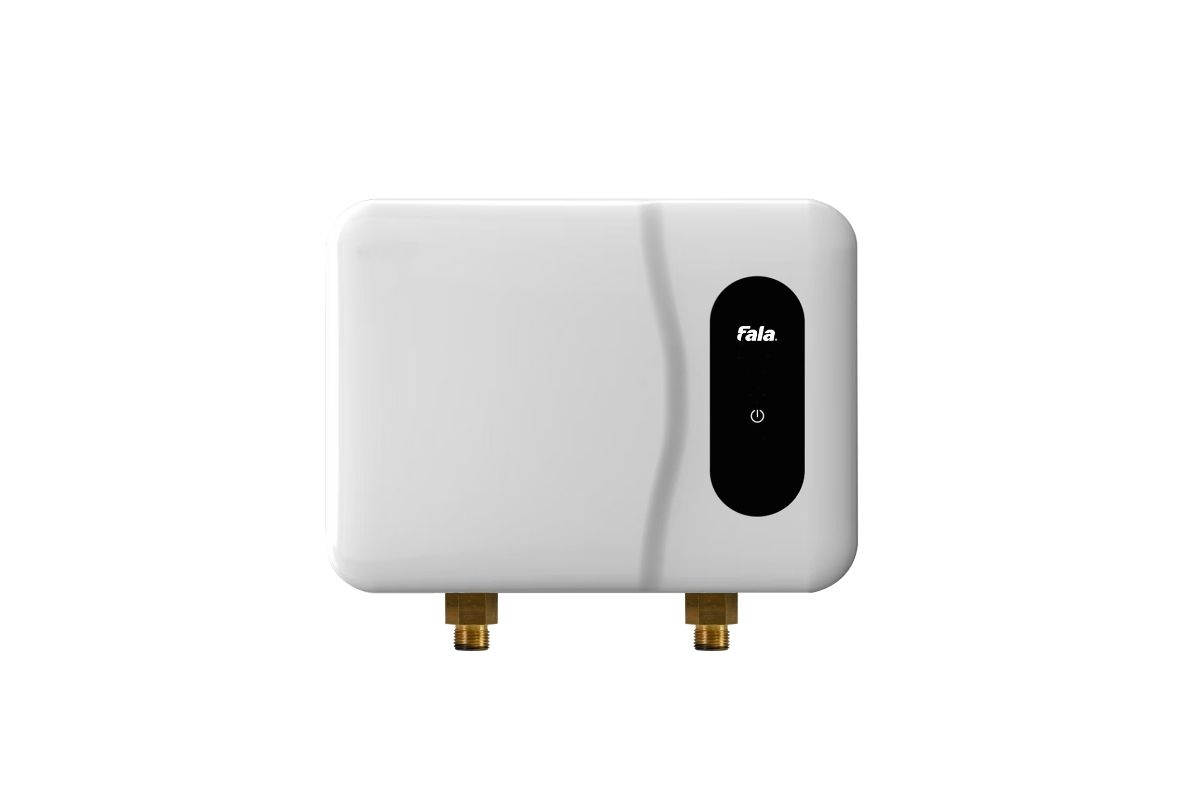

The 6.3kW Single Phase Instant Electric Hot Water Heater provides efficient, on-demand hot water for point-of-use applications such as kitchens and bathrooms. Designed for lower demand environments, it delivers consistent performance while minimising energy consumption by heating water only when required.

The unit maintains stable outlet temperatures for everyday comfort. Automatic power modulation adjusts to flow rate and inlet conditions, ensuring reliable performance even with fluctuations in water pressure or temperature. Its compact, space-saving design and simple installation make it ideal for locations where space is limited and ease of install is essential.
Talk To A Specialist
See the Evidence

An efficient solution for single-fixture and lower-demand applications.

This Single Phase Instant Electric Hot Water heater supplies reliable hot water at point of use for a single outlet, such as a basin or sink. Precision temperature control maximises energy efficiency while providing stable, comfortable hot water performance.
Rated Power
6.3kW
Power Supply
1 Phase
Temperature Setting
45°C

Ideal for:

Commercial Buildings Offices Factories & Industrial Education Facilities Healthcare Facilities
Model
Single Phase 6.3kW
Product No.
2850117
Type
Instantaneous
Voltage, V
230
Rated Power, kW
6.3
Rated Current, A
28
Hot Water Delivery, L/min (at ΔT=20°C)
4.4
Min. Flow Rate, L/min
2
Max Inlet Pressure Rating, kPa
750
Min Inlet Pressure Rating, kPa
100
Temperature, °C
45°C maximum, non-adjustable
Dimension, mm
270W x 245H x 60D
Weight, kg
2.5
IP Rating
IPX4
Water Connections
G1/2” Male
WaterMark Approval
WM 40394 (AS 3498)
Warranty
2 Years
PDF Specification Sheet 103 KB – PDF PDF Installation Manual 303 KB – PDF DWG Technical Drawing - BIM DWG DXF Technical Drawing - BIM DXF RFA BIM Revit file RFA
WaterMark Certified WM 40394 (AS 3498)
  • Space saving and compact, ideal for installation where space is limited
  • Electronically controlled to maintain a consistent outlet temperature
  • Delivers water not exceeding 45°C in accordance with AS3498
  • No flue, ventilation or safe trays required
  • Automatic power adjustment based on flow rate compensates for variations in inlet water temperature and pressure
  • Electronic protection system combines temperature safety cut-off with intelligent flow control to ensure safe, reliable operation

Frequently asked questions

The 6.3kW unit is ideal for point-of-use and lower demand applications, such as a single bathroom, basin, or kitchen sink.

It can supply more than one outlet, but performance will depend on demand. For simultaneous multi-outlet use, a higher capacity unit may be more suitable.

The unit delivers water up to a maximum of 45°C, in accordance with AS3498.

No. The 6.3kW model has a fixed maximum outlet temperature and is not adjustable.

No. With a maximum outlet temperature of 45°C, a tempering valve is not required (AS3498 compliant).

The unit activates at a minimum flow rate of 2L/min. Below this, the heater will not operate.

Yes. Output temperature can vary depending on inlet water temperature and flow rate, particularly in higher demand situations.

No. As an electric instantaneous system, it does not require flues, ventilation, or gas connections.

No. The unit is not designed to provide heated potable (drinking) water.

Minimal maintenance is required. Regular inspection and descaling (in hard water areas) is recommended to maintain performance.

6.3kW → best for single outlet or low-demand use. 8.5kW → better for multiple outlets or higher demand.

Other products in the Fala range.

INSTANTANEOUS

Single Phase Instantaneous 8.5kW

Supplies water to several water pick-ups, such as the kitchen and bathroom. Precision temperature control maximises energy efficiency while providing stable, comfortable hot water performance.
View Product →
INSTANTANEOUS

3 Phase Instantaneous

High-capacity, all-electric point-of-use hot water for commercial and multi-residential buildings.
View Product →
SMALL STORAGE

Open Vented

Provides reliable hot water at point of use for a single outlet, where fixtures are located far from central plant.
View Product →

On This Page

Spec Sheet
Get In Touch

OVERVIEW

An efficient solution for single-fixture and lower-demand applications.

This Single Phase Instant Electric Hot Water heater supplies reliable hot water at point of use for a single outlet, such as a basin or sink. Precision temperature control maximises energy efficiency while providing stable, comfortable hot water performance.
Rated Power
6.3kW
Power Supply
1 Phase
Temperature Setting
45°C

Ideal for:

Commercial Buildings Offices Factories & Industrial Education Facilities Healthcare Facilities

SPECIFICATIONS

Model
Single Phase 6.3kW
Product No.
2850117
Type
Instantaneous
Voltage, V
230
Rated Power, kW
6.3
Rated Current, A
28
Hot Water Delivery, L/min (at ΔT=20°C)
4.4
Min. Flow Rate, L/min
2
Max Inlet Pressure Rating, kPa
750
Min Inlet Pressure Rating, kPa
100
Temperature, °C
45°C maximum, non-adjustable
Dimension, mm
270W x 245H x 60D
Weight, kg
2.5
IP Rating
IPX4
Water Connections
G1/2” Male
WaterMark Approval
WM 40394 (AS 3498)
Warranty
2 Years

APPROVALS & CERTIFICATIONS

WaterMark Certified WM 40394 (AS 3498)

FEATURES

  • Space saving and compact, ideal for installation where space is limited
  • Electronically controlled to maintain a consistent outlet temperature
  • Delivers water not exceeding 45°C in accordance with AS3498
  • No flue, ventilation or safe trays required
  • Automatic power adjustment based on flow rate compensates for variations in inlet water temperature and pressure
  • Electronic protection system combines temperature safety cut-off with intelligent flow control to ensure safe, reliable operation

FAQS

Frequently asked questions

The 6.3kW unit is ideal for point-of-use and lower demand applications, such as a single bathroom, basin, or kitchen sink.

It can supply more than one outlet, but performance will depend on demand. For simultaneous multi-outlet use, a higher capacity unit may be more suitable.

The unit delivers water up to a maximum of 45°C, in accordance with AS3498.

No. The 6.3kW model has a fixed maximum outlet temperature and is not adjustable.

No. With a maximum outlet temperature of 45°C, a tempering valve is not required (AS3498 compliant).

The unit activates at a minimum flow rate of 2L/min. Below this, the heater will not operate.

Yes. Output temperature can vary depending on inlet water temperature and flow rate, particularly in higher demand situations.

No. As an electric instantaneous system, it does not require flues, ventilation, or gas connections.

No. The unit is not designed to provide heated potable (drinking) water.

Minimal maintenance is required. Regular inspection and descaling (in hard water areas) is recommended to maintain performance.

6.3kW → best for single outlet or low-demand use. 8.5kW → better for multiple outlets or higher demand.
